Professional Polycarbonate System Products in Transparent Roof and Facade Coatings

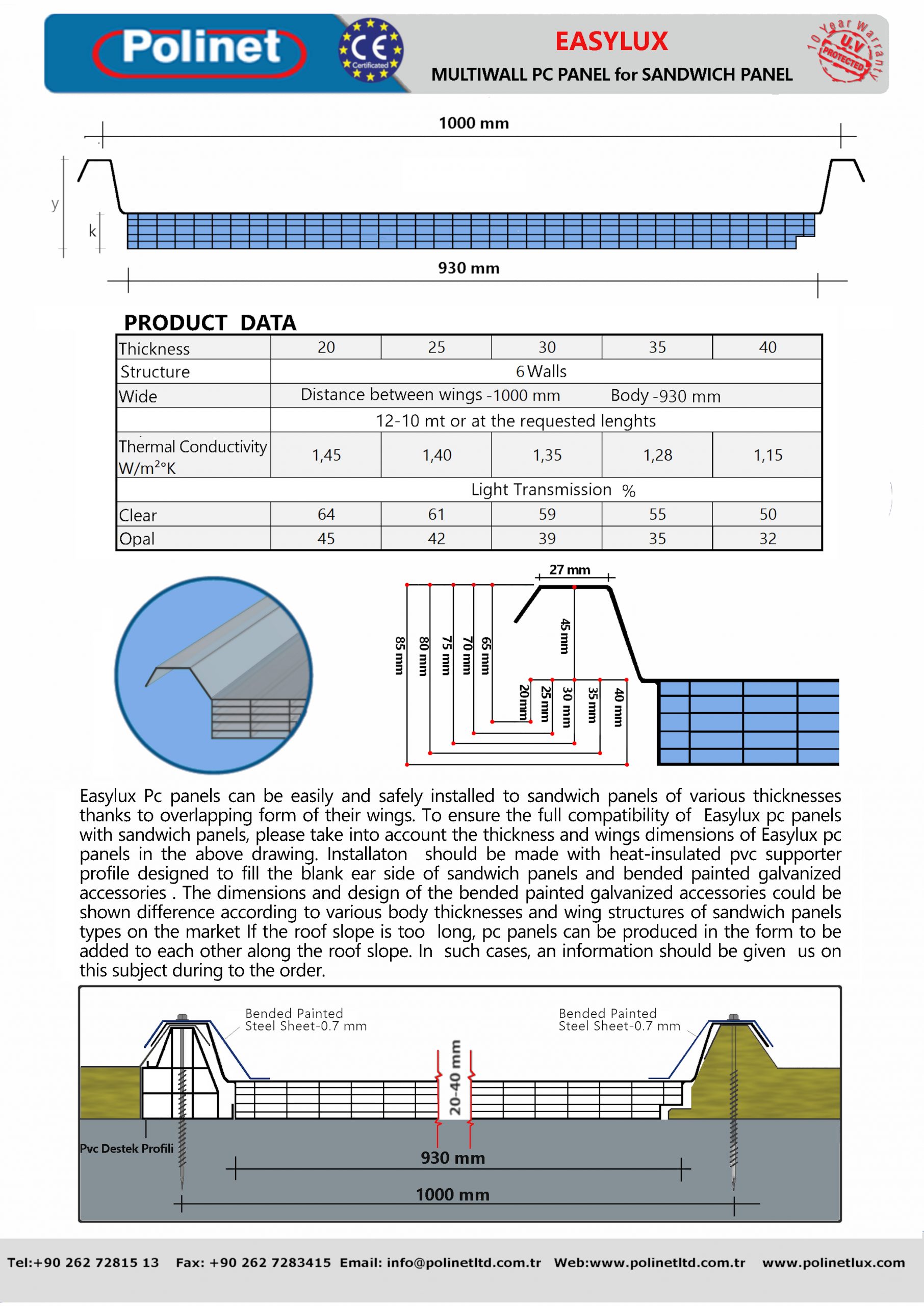

EasyLux – Multi-Walled Roof Panel Between Sandwich Panel
EasyLux polycarbonate panels are high-performance products that meet the differential expansion of polycarbonate and metal sheets along the entire length of the roof slope in industrial building roof lighting.
The ear structure of EasyLux products enables fast, easy and safe mounting on the overlapping sandwich roof panels without being exposed to any water and wind effects.
Easy assembly connection details developed for many sandwich roof panels available in the market prevent wind, water and heat loss problems. EasyLux Pc panels provide high thermal insulation, durability and UV protection with its 6-walled structure.
Thanks to their superior production technology, they can be produced in different thicknesses from 20 mm to 40 mm, and they can be easily mounted on sandwich panels of different thicknesses. Get the light you desire with EasyLux pc panel systems, safely and at the best quality price ratio.
Scope of application
-Roof Sandwich Panel Skylight
-Flat Sloped Roof and Facade Skylight
-Industrial Buildings
-On Roofs and Facades of Renovated Buildings
EasyLux System Advantages
-Easy and fast assembly
-Global system, can be used with sandwich roof panels in all kinds of overlapping forms and thicknesses available in the market.
-High Fire Resistance
-10 years warranty against yellowing and breakage
-High impact resistance
-Excellent thermal insulation property
-High light transmittance
SYSTEM INFORMATION
SYSTEM DETAILS
As a result of the processes performed on the surfaces of polycarbonate panels during the production process, the visual effects, light transmittance properties, thermal insulation values, UV and impact resistance performances of the products can be increased; In this way, products that offer more climatic and visual comfort solutions can be obtained.
SP-Strong Surface Protection
It is the process applied to the surface of the product in order to increase the resistance of the product against paint, alcohol and oils for applications made in areas with risk of vandalism such as scratching and graffiti.
UV-Plus / Increased UV Protection
Actions taken to further increase the resistance of products against yellowing and to extend the warranty period.
Mattefinishing
Processes performed for the purpose of more comfortable light propagation by reducing the glare and reflection on the product surfaces.
IR/InfiratedReflective
Preventing infrared rays. Processes to increase indoor comfort by reducing thermal heat.
Metallic Colors: Metallic Grey, Gold , Copper
Standard Colors: Transparent, Opal
Other Colors: Ice White, Bronze, Blue, Green, Turquoise, Glass Green, Red
Please contact our office for other project-based colors apart from these products.
Ice White
Metallic Gray
Green
Please contact our office for other project-based colors apart from these products.
Opal
Blue
Red
Gold
Glass Green
Bronze
Copper
Turquoise
EasyLux CatalogMasterLux

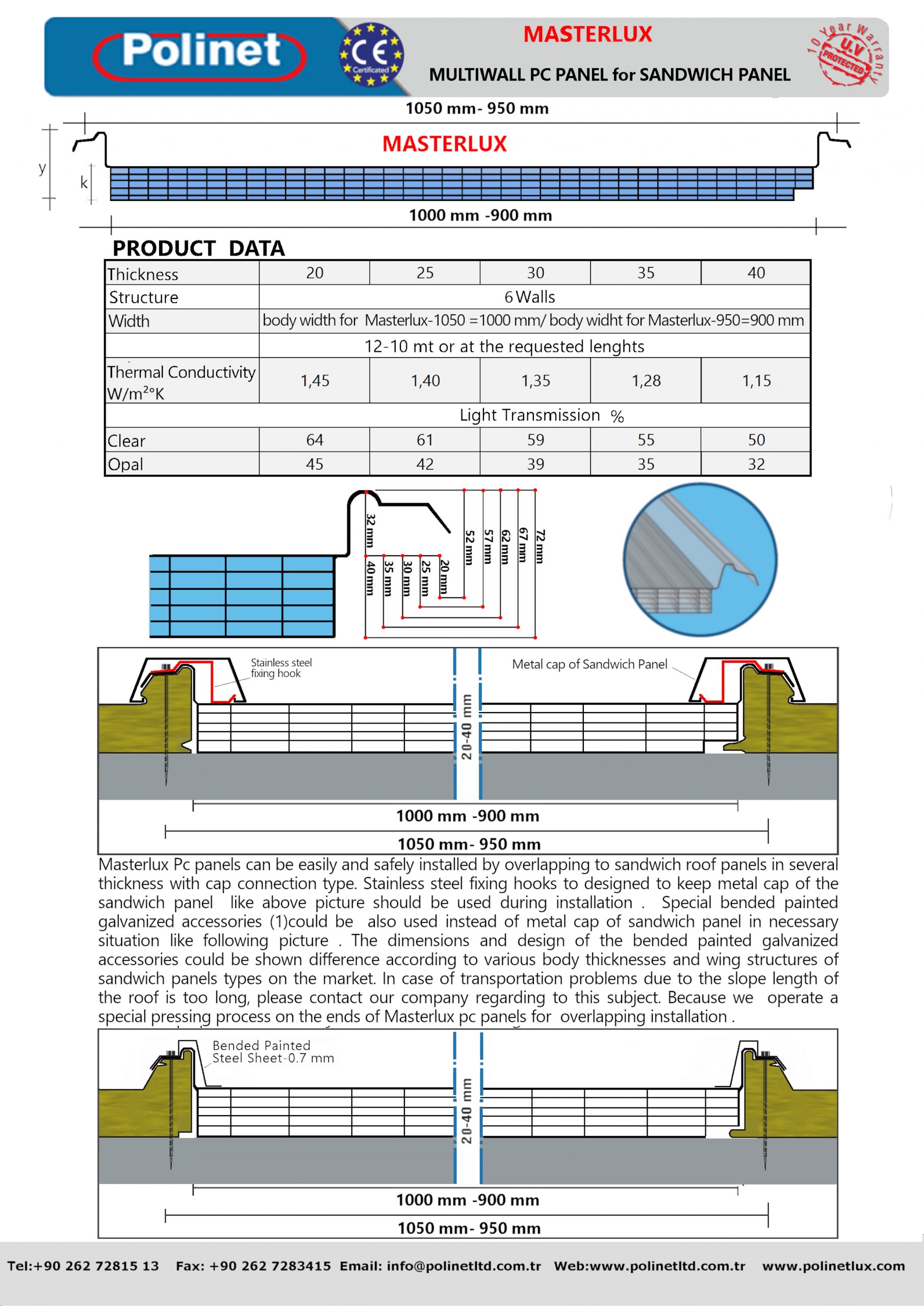

MasterLux – Multiwall Roof Panel Between Sandwich Panel
Wing forms on both sides of Masterlux polycarbonate panels are compatible with many cap system sandwich panel edge ribs in the market.
Thanks to the overlapping connection detail, the capped system can be easily attached between the sandwich panels. Thanks to this systemic solution, the different expansion rates of both products along the roof slope length are met efficiently.
Masterlux pc panel system provides fast, easy and safe application without the risk of exposure to water. In such industrial roofs, the 6-walled body structure of Masterlux panels with strong ultraviolet protection ensures high product performance, very good thermal insulation, durability and excellent natural lighting.
Thanks to Polinet’s superior production technology, Pc panels are produced in various thicknesses from 20 mm to 40 mm. PC panel thickness options can be easily adapted to sandwich panels of different thicknesses, offering alternative economic solutions with the best quality price ratio.
Scope of application
-Roof Sandwich Panel Skylight
-Flat Sloped Roof and Facade Skylight
-Industrial Buildings
-On Roofs and Facades of Renovated Buildings
Masterlux System Advantages
-Easy and fast assembly
-Global system can be used with all kinds of capped form and thickness sandwich roof panels available in the market.
-High Fire Resistance
-10 years warranty against yellowing and breakage
-High impact resistance
-Excellent thermal insulation property
-High light transmittance
SYSTEM INFORMATION
SYSTEM DETAILS
As a result of the processes performed on the surfaces of polycarbonate panels during the production process, the visual effects, light transmittance properties, thermal insulation values, UV and impact resistance performances of the products can be increased; In this way, products that offer more climatic and visual comfort solutions can be obtained.
SP-Strong Surface Protection
It is the process applied to the surface of the product in order to increase the resistance of the product against paint, alcohol and oils for applications made in areas with risk of vandalism such as scratching and graffiti.
UV-Plus / Increased UV Protection
Actions taken to further increase the resistance of products against yellowing and to extend the warranty period.
Mattefinishing
Processes performed for the purpose of more comfortable light propagation by reducing the glare and reflection on the product surfaces.
IR/InfiratedReflective
Preventing infrared rays. Processes to increase indoor comfort by reducing thermal heat.
Metallic Colors: Metallic Grey, Gold , Copper
Standard Colors: Transparent, Opal
Other Colors: Ice White, Bronze, Blue, Green, Turquoise, Glass Green, Red
Please contact our office for other project-based colors apart from these products.
Ice White
Metallic Gray
Green
Please contact our office for other project-based colors apart from these products.
Opal
Blue
Red
Gold
Glass Green
Bronze
Copper
Turquoise
