Professional Window & Automation Systems in Polycarbonate Roof, Facade Cladding
Grecalux – Trapezoidal Multiwall Polycarbonate Panel
UV protected Grecalux multi-walled pc panels have high load resistance, heat insulation and very good light transmission properties with their trapezoidal form and 3-walled structure.

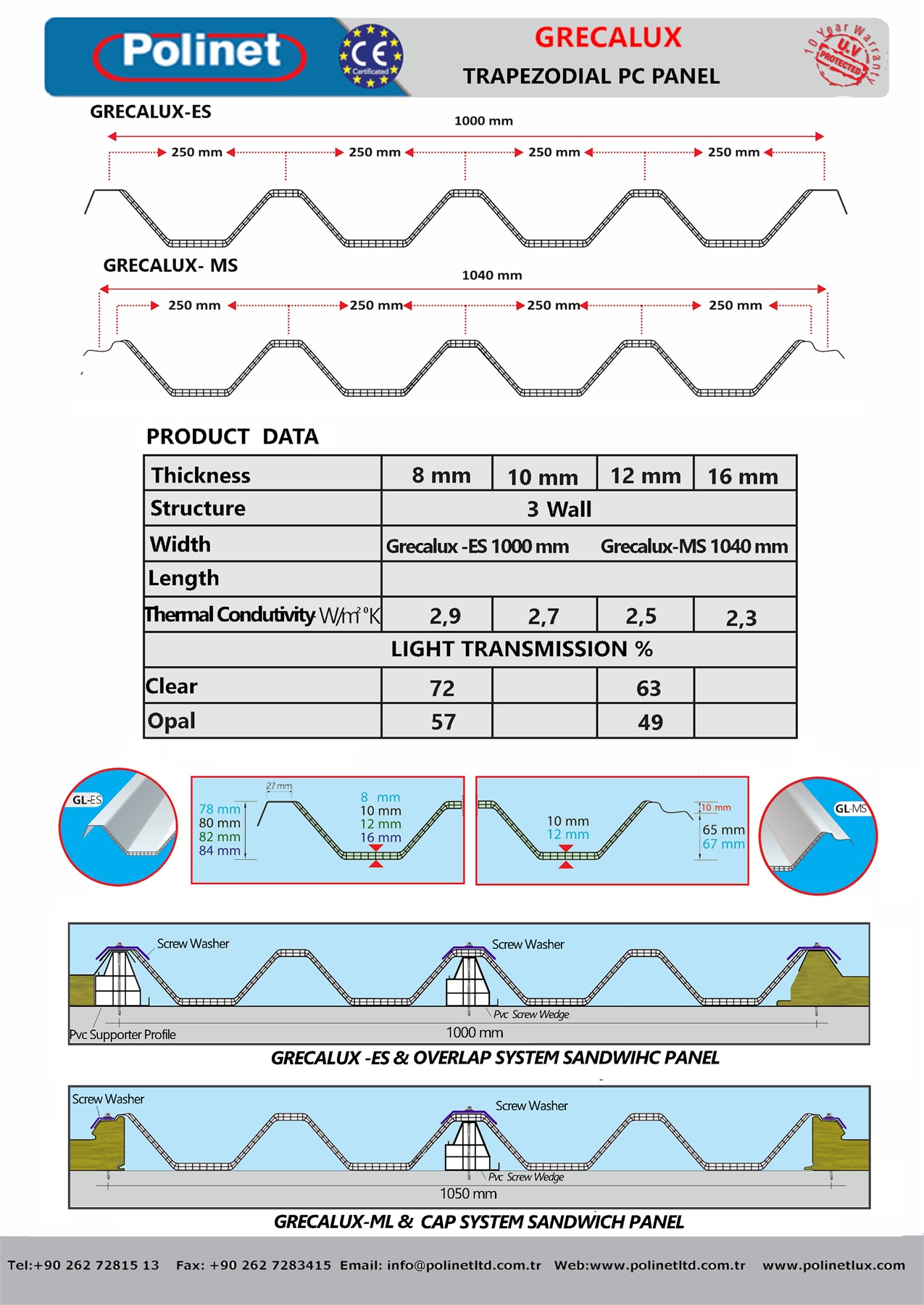

Grecalux pc panels, for easy and safe use together with the rebated or capped models in the sandwich panel market, provide economic advantages as they are produced with different thickness alternatives of 8, 10, 12 and 16 mm, thanks to its superior production technology.
Grecalux pc panels are produced with closed panel ends to prevent loss of aesthetic appearance and light transmission caused by dust entering the body. Large roof and wall areas can be easily covered with Grecalux panels.

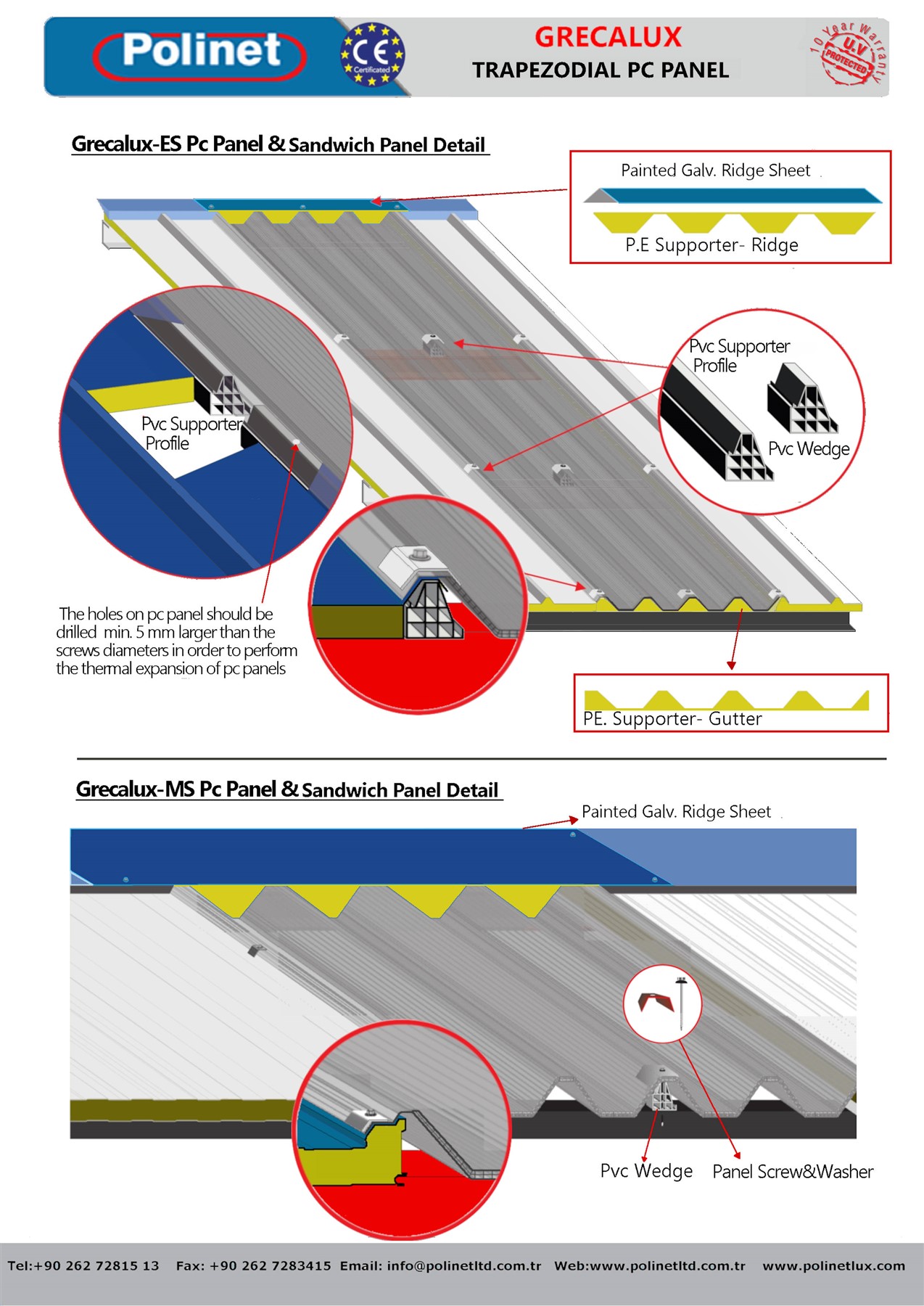

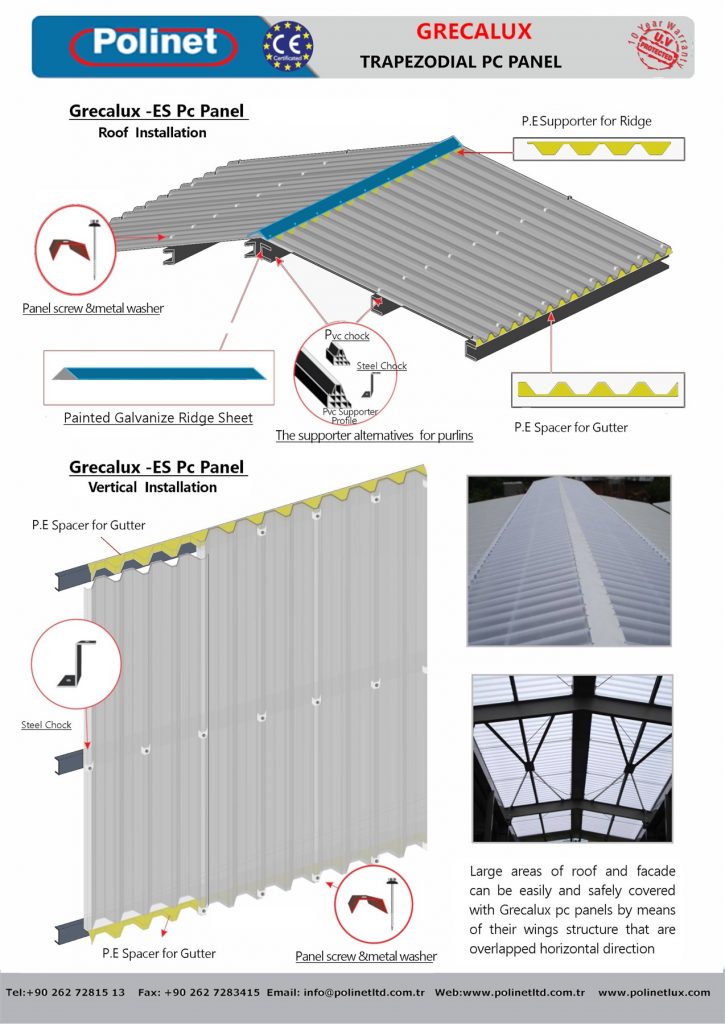

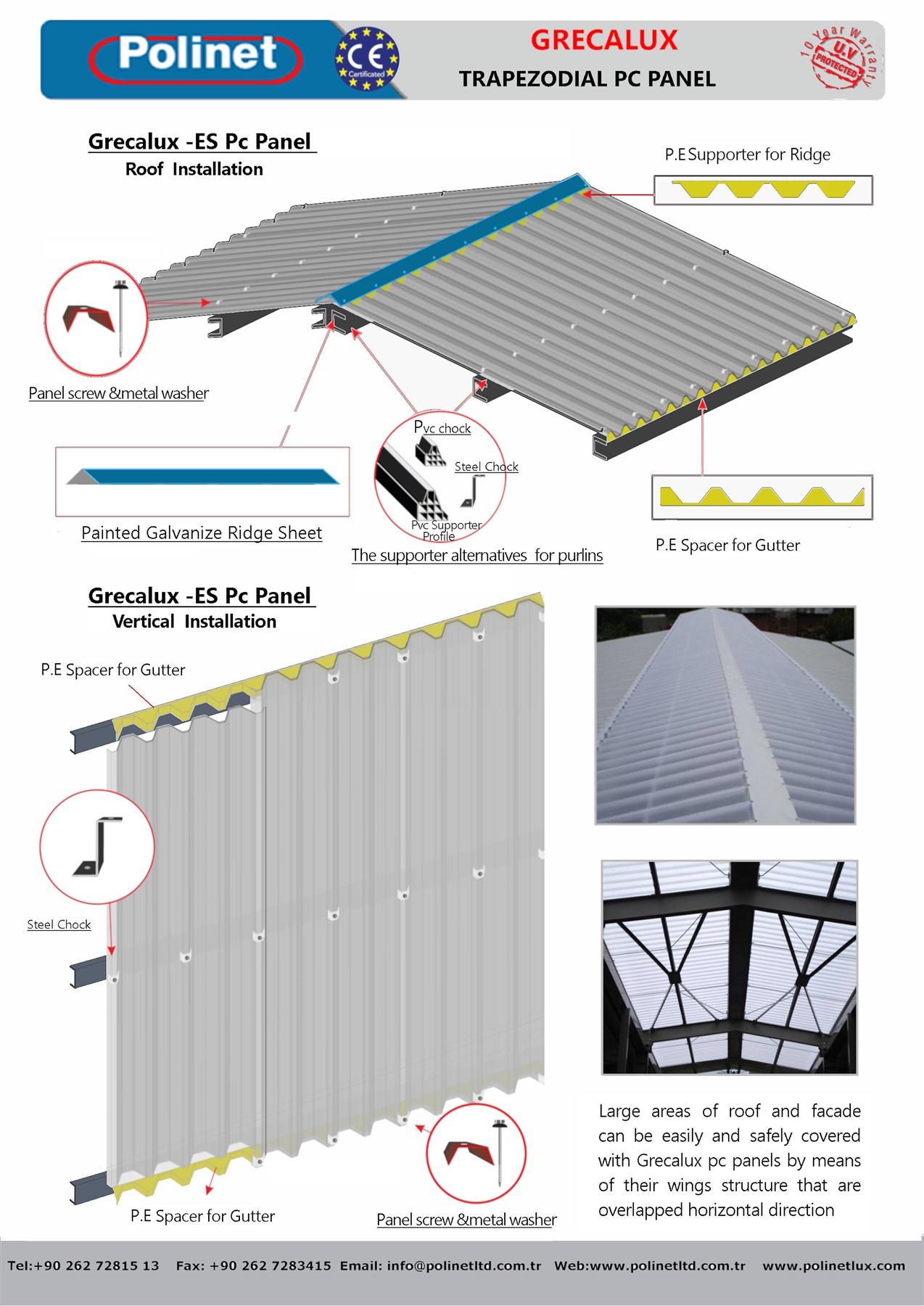

The longitudinal and lateral, overlapping easy system connection details provide the advantage to cover large roof and wall areas without the need for any fastening accessories.
Scope of application
-Roof Sandwich Panel Skylight
-Flat Sloped Roof and Facade Skylight
-Industrial Buildings
-On Roofs and Facades of Renovated Buildings
Grecalux System Advantages
-High Light Transmittance
-Wide Color Alternatives
-High Heat and Air Insulation
-Very Good Fire Performance
-UV Protected
-200 times more strength than glass
-10 Years Warranty
-Fast and Easy Application
SYSTEM INFORMATION
SYSTEM DETAILS
As a result of the processes performed on the surfaces of polycarbonate panels during the production process, the visual effects, light transmittance properties, thermal insulation values, UV and impact resistance performances of the products can be increased; In this way, products that offer more climatic and visual comfort solutions can be obtained.

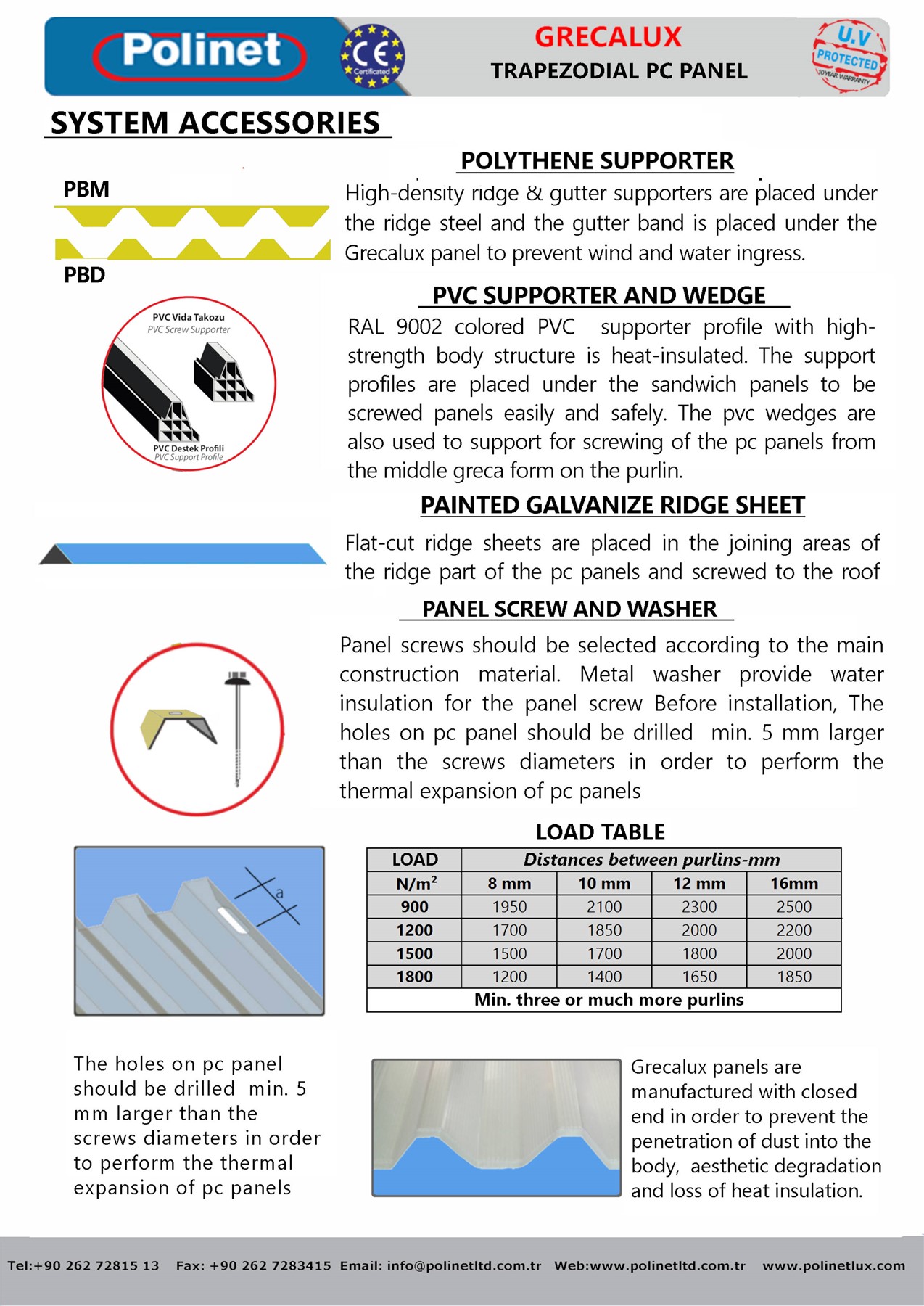

SP-Strong Surface Protection
It is the process applied to the surface of the product in order to increase the resistance of the product against paint, alcohol and oils for applications made in areas with risk of vandalism such as scratching and graffiti.
UV-Plus / Increased UV Protection
Actions taken to further increase the resistance of products against yellowing and to extend the warranty period.
Mattefinishing
Processes performed for the purpose of more comfortable light propagation by reducing the glare and reflection on the product surfaces.
IR/InfiratedReflective
Preventing infrared rays. Processes to increase indoor comfort by reducing thermal heat.
Metallic Colors: Metallic Grey, Gold , Copper
Standard Colors: Transparent, Opal
Other Colors: Ice White, Bronze, Blue, Green, Turquoise, Glass Green, Red
Please contact our office for other project-based colors apart from these products.
Ice White
Metallic Gray
Green
Please contact our office for other project-based colors apart from these products.
Opal
Blue
Red
Gold
Glass Green
Bronze
Copper
Turquoise
